N: 5.4A, 20V, 2W, Dual MOSFETs P: -5.1A, -20V, 2W, Dual MOSFETs

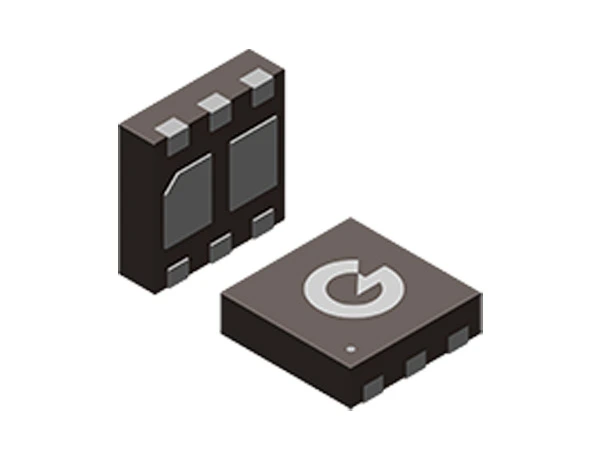

| Package | DFN2020-6LC |
| AEC Qualified | NO |
| Pb Free | YES |
| Halide free | YES |
| Reach | YES |
| RoHS | YES |
| Marketing Status | Active |
| Configuration | Dual |
| V(BR)CES (V) | / |
| Channel Polarity | PN |
| ESD | / |
| TJ(°C) max. | 150 |
| TJ(°C) min. | -55 |
| PD(W) Max. | N:2 P:2 |
| V(BR)DSS(V) Min. | N:20 P:-20 |
| VGS(V) Max. | N:±8 P:±12 |
| ID(A) Max. | N:5.4 P:-5.1 |
| IGSS(uA) Max. | ±0.1 |
| VGS(th)(V) Max. | 1.2 |
| RDS(on)(mΩ)@ 10V Typ. | / |
| RDS(on)(mΩ)@ 10V Max. | / |
| RDS(on)(mΩ)@ 4.5V Typ. | / |
| RDS(on)(mΩ)@ 4.5V Max. | 45 |
| RDS(on)(mΩ)@ 2.5V Typ. | / |
| RDS(on)(mΩ)@ 2.5V Max. | 59 |
| RDS(on)(mΩ)@ 1.8V Typ. | / |
| RDS(on)(mΩ)@ 1.8V Max. | / |
| ECCN(US) | EAR99 |
